Material
Canopy: aluminum varnished in RAL 9006 (silver); cords transparent / silver. Housing: aluminum glass bead blasted and anodized silver
Illuminant cover made of ceramic glass clear, or printed in white or black/white (pattern)
Lamps
2x High-volt halogen bulb "ECO" 160W / R7s, 2950K (warm white), 6600lm
Light up and down freely radiating depending on the version of the cover glass:
A: freely illuminating, B: diffused, or C: semi-transparent
Control
Control external via external dimmer recommended. Conventional phase cut dimmer or strailing edge dimmer
Ceiling reflector as accessory available

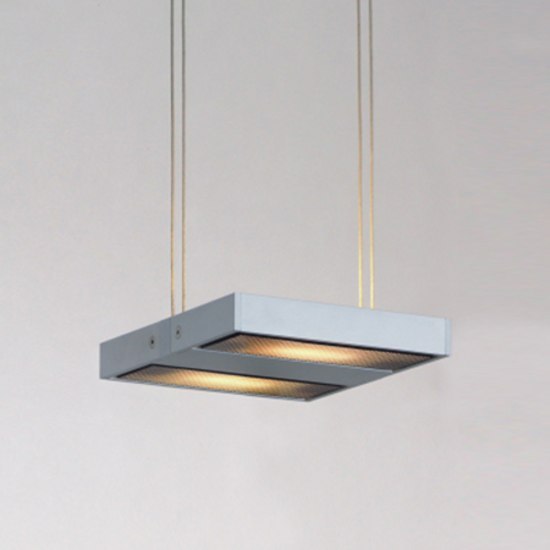

The SML halogen suspension luminaire only comes in one size (hanging height is adjustable) and also only in one wattage 2x high-volt halogen bulbs 160W / R7s
W 17 cm
L 18,5 cm
H 35 cm - 150 cm (min.- max. other heights on request)
Più
SML Halogen Suspension
Disegnato nel
2001
Architonic ID 1028980
-
Material
Housing made of glass-bead blasted and silver anodized aluminum. (Exactly: canopy: aluminum varnished in RAL 9006 (silver); rods & housing: glass bead blasted aluminium and anodized silver)
Illuminant cover made of ceramic glass clear, or printed in white or black/white (pattern)
2 tungsten halogen lamps "ECO" 160W / R7s, 2950K (warm white), 6600lm.Lamps
2x High-volt halogen bulb "ECO" 160W / R7s, 2950K (warm white), 6600lm
Light up and down freely radiating depending on the version of the cover glass:
A: freely illuminating, B: diffused, or C: semi-transparent
Control
Control external via external dimmer recommended. Conventional phase cut dimmer or strailing edge dimmer
Ceiling reflector as accessory available
The SML halogen ceiling luminaire only comes in one size and hanging height and also only in one wattage 2x high-volt halogen bulbs 160W / R7s
W 17 cm
L 18,5 cm
H 35 cm
Più
SML Halogen Ceiling
Disegnato nel
2002
Architonic ID 1038361
-
Material
Housing made of glass-bead blasted and silver anodized aluminum or highly lustrous chrome-plated
Illuminant cover of ceramic glass clear, or printed in whtie or black/white (pattern)
Lamps
S: High-volt halogen bulb "ECO" 60W / G9, 2800K (warm white), 980lm, with integrated UV filter
M: High-volt halogen bulb "ECO" 120W / R7s, 2950K (warm white), 2300lm
L: High-volt halogen bulb "ECO" 160W / R7s, 2950K (warm white), 3300lm
Light up and down freely radiating depending on the version of the cover glass:
A: freely illuminating, B: diffused, or C: semi-transparent
Control
Control external via external dimmer recommended. Conventional phase cut dimmer or strailing edge dimmer
(Installations) cover plate and mirror adapter as accessory available
The SML halogen wall luminaires come in three sizes and wattages : -S- B 8,5cm 60W / G9 bulb, -M- B 13cm 120W / R7s bulb and -L- B 17cm 160W / R7s bulb
W 8,5, 13, 17 cm
T 8,5 cm
H 2,5 cm
Awards
Design Center Stuttgart, Focus Balance Silber ; Designpreis der Bundesrepublik Deutschland
Più
SML Halogen Wall
Disegnato nel
2001
Architonic ID 1028981
-
Material
Base: steel varnished in RAL 9007 (silver) ; rods & housing: glass bead blasted aluminum and anodized silver
Illuminant cover of ceramic glass clear, or printed in white or black/white (pattern)
Light up and down freely radiating depending on the version of the cover glass:
A: freely illuminating, B: diffused, or C: semi-transparent
Lamps
2x High-volt halogen bulbs "ECO" 120W / R7s, 2950K (warm white), 4600lm.
Bulb
2 high-volt halogen bulbs "ECO" 120W / R7s, 2950K (warm white), 4600lm.
Control
Control (on/off, dimming) over in the base integrated touch dimmer
Regulation
on/off, dimming
Awards
Design Zentrum Nordrhein-Westfalen, red dot design award
W 22 cm (base) W housing: 17 cm
L 22 cm (base) L housing: 18,5 cm
H 185 cm (overall) H housing: 2,5 cm
Più
SML Halogen floor lamp
Disegnato nel
2002
Architonic ID 1028982
-
SML T5 Ceiling can, on account of the extremely flush fit (50 millimeters in total) be attached very close to the ceiling. The slender, very minimalist luminaire carcass thus seems very discreet and reserved on the ceiling, almost like part of the architecture. As the operating equiopment is housed in the baldachin, no ceiling installation is necessary .
The T5 Ceiling Sensor version of SML comes with energy-saving presence and surround control, and it can also be used in DALI-regulated light systems.
Material
Baldachin: sheet steel varnished in RAL 9006. Illuminant cover: polycarbonate. A: transparent prismatic, B: opal (satin-finish) C: opal with pattern
Lamps
2 T5 bar fluorescent bulb with high operational efficiency. 2x 54W / G5, 4000K (cool white), 4850lm, CRI > 84, EEI A. Bulbs also available in 3000k (warm white).
Light
depending on the illuminant cover downwards and upwards: A: emitting freely, B: scattered or C: slightly shining through
Regulation
(on/off, dimming) via switch on the luminaire and externally and/or) using a standard switch (5-pole wiring needed for full functionality)
Control
On/off, dimming via external standard tip switch (5-pole wiring needed for full functionality)
The SML T5 Ceiling luminaire only comes in one size and wattage: W 120 cm, T 18.5 cm, H 5 cm, 2x 54W / G5 bulbs. It is only available in glass bead blasted and anodized silver aluminium
W 120 cm
D 18,5 cm
H 5 cm
Più
SML T5 Ceiling
Disegnato nel
2004
Architonic ID 1028983
-
The suspension luminaire in the energy-saving fluorescent bulb version is 1.20 meters long. The very sleek luminaire body is suspended on four fine cables making it appear very light. The suspension luminaire T5 also offers excellent light for work situations, for example above desks. The light intensity is controlled via a switch dimmer on the housing.
It can also be employed in DALI-regulated lighting systems.
Material
Baldachin: Aluminium varnished in RAL 9006. depending on the illuminant cover: polycarbonate A: transparent prismatic, B: opal (satin-finish) C: opal with pattern
Lamps
2 T5 bar fluorescent bulbs with high operating efficiency. 2x 54W / G5, 4000K (cool white), 4850lm, CRI > 84, EEI A. Bulbs also available in 3000k (warm white).
Light
depending on the illuminant cover downwards and upwards: A: emitting freely, B: scattered or C: slightly shining through
Regulation
(on/off, dimming) via switch on the luminaire and externally and/or) using a conventional swtich (5-pole wiring needed for full functionality)
Control
On/off, dimming via tip switch on the luminaire and externally (and/or) using a conventional tip switch (5-pole wiring needed for full functionality)
W 120 cm
T 18,5 cm
H 20 cm - 200 cm (min.- max. other heights on request)
Più
SML T5 Suspension
Disegnato nel
2004
Architonic ID 1028984
-
SML T5 Wall luminaires come in three sizes and wattages: -S- W 60cm 24W / G5 bulb, -M- W 90cm 39W / G5 bulb and -L- W 120cm 54W / G5 bulb.
Material
Housing made of glass-bead blasted and silver anodized aluminium or highly lustrous chrome-plated. Illuminant cover: Polycarbonate. A: transparent prismatic, B: opal (satin-finish) C: opal with pattern
Lamps
T5- bar fluorescent bulb with high operational efficiency S: 24W / G5, 4000K (cool white), 1900lm, CRI > 84, EEI A ; M: 39W / G5, 4000K (cool white), 3400lm, CRI > 84, EEI A ; L: 54W / G5, 4000K (cool white), 4850lm, CRI > 84, EEI A. All bulbs also available in 3000k (warm white).
Light
depending on illuminant cover downwards and upwards: A: emitting freely, B: scattered or C: slightly shining through
Regulation
On/off external dimmable versions on request (only for the models M- and -L-)
Control
On/off external, dimmable versions on request (1-10V analogous, only for the models M- and -L-)
W 60, 90, 120 cm
D 8,5 cm
H 2,5 cm
Design Center Stuttgart, Focus in Silber ; International Forum Design, iF design award ; Messe Frankfurt GmbH, Design Plus ; Designpreis der Bundesrepublik Deutschland
Più
SML Wall T5
Disegnato nel
2002
Architonic ID 1028985
-
Materiale supporto in alluminio anodizzato argento,
coperture in vetro: trasparente e bianco/nero (bianco su richiesta)
Lampade LED, 3000K, CRI 85: piccola 16W, 1020lm; media 23W, 1530lm; grande 32 W, 2040lm
Luce illuminazione libera verso l’alto e verso il basso o attraverso diverse coperture in vetro: a illuminazione libera, diffusa o semi-trasparenti
Comando consigliato com- mutatore esterno
Altre caratteristiche su richiesta con adattatore specchio
Più
SML LED Wall S
Disegnato nel
2012
Architonic ID 1143482
-
Materiale supporto in alluminio anodizzato argento,
coperture in vetro: trasparente e bianco/nero (bianco su richiesta)
Lampade LED, 3000K, CRI 85: piccola 16W, 1020lm; media 23W, 1530lm; grande 32 W, 2040lm
Luce illuminazione libera verso l’alto e verso il basso o attraverso diverse coperture in vetro: a illuminazione libera, diffusa o semi-trasparenti
Comando consigliato com- mutatore esterno
Altre caratteristiche su richiesta con adattatore specchio
Più
SML LED M
Disegnato nel
2012
Architonic ID 1143626
-
Materiale supporto in alluminio anodizzato argento,
coperture in vetro: trasparente e bianco/nero (bianco su richiesta)
Lampade LED, 3000K, CRI 85: piccola 16W, 1020lm; media 23W, 1530lm; grande 32 W, 2040lm
Luce illuminazione libera verso l’alto e verso il basso o attraverso diverse coperture in vetro: a illuminazione libera, diffusa o semi-trasparenti
Comando consigliato com- mutatore esterno
Altre caratteristiche su richiesta con adattatore specchio
Più
SML LED L
Disegnato nel
2012
Architonic ID 1143627
