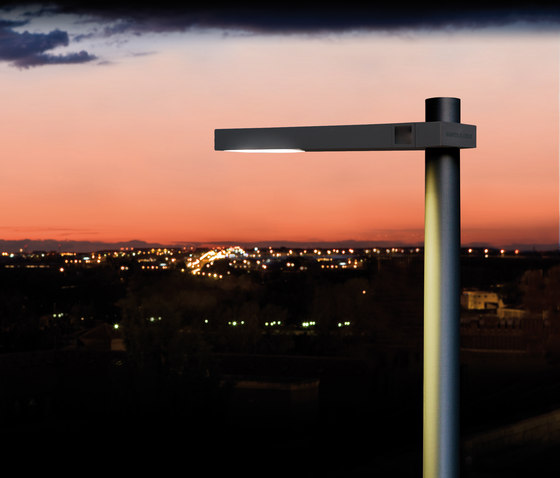

Rama LED di Santa & Cole

The intensity of the light emitted can be adjusted according to the needs of the urban environment, thus allowing a notable energy saving.
Technical upgrade and energy improvement of the Rama luminaire for outdoor lighting, which allows energy consumption to be optimized by incorporating LED technology which improves the luminous efficacy.
The maintenance tasks are likewise reduced.

Materials and finishes

· Body
Body in recycled aluminium extrusion, anodized finish, with clamp and injection cover in aluminium injection with grey painted finish. Internal dissipator in aluminium extrusion black anodized finish. Methacrylate diffuser.
· Columns
Column with circular cross section of different diameters and heights (depending on reference). Allows several luminaires to be fixed (1, 2 or 5).
4.70 or 6.20 m high and 127 mm diameter grey painted columns in hot-galvanized steel or anodized aluminium, for 1 or 2 luminaires at the same or different heights.
8m high double-section grey painted columns of hot galvanized steel with a Ø of 152 mm in the lower part and a Ø of 127 mm in the upper part, for 1 or 2 luminaires at the same or different heights, or for 5 luminaires at different heights.
6.20 or 8.20m high double-section columns with a Ø of 152 mm in hot-galvanized steel and painted tube in the lower part and a Ø of 129 mm in stainless steel AISI 304 polished finish tube in the upper part, for 1 or 2 luminaires at the same or different heights, or for 5 luminaires at different heights (for the 8.20 m column).

Luminaire

· Optical unit
Set of street optical lenses.
· Electronic equipment
Offers the possibility of powering the lamp from 350 mA to 500 mA.
Adjustable 1-10V or Dali power sources can be supplied as an option.
· Fastening to column
Fastening of the body with aluminium half-clamp using stainless steel screws.
· Installation of the luminaire
The luminaire is delivered assembled. The rear clamp is delivered separately together with the screws necessary.
It is not necessary to open the unit to install the luminaire.
A connector housed in the outer part of the body allows easy installation. Santa & Cole will maintain the guarantee provided that the body of the luminaire is not opened.
The assembly instructions are enclosed with the street lamp.

Installation
The column is fixed by means of a concrete bucket installed in situ and anchor bolts 20 cm below the paving.
The foundations must foresee the groove for the electric connection.
The unit is delivered dismantled. The assembly instructions are enclosed with the street lamp.
The template and the anchor bolts are delivered with the column.

Maintenance
This luminaire does not require maintenance.

Weight
· Luminaire: 9,2 Kg
