one LED. wall / ceiling luminaire di f-sign
j o h e c h t / f r e c h ³
one is a 4mm ultra-flat lighting series. straight design reduced to the essential.
aluminium composite used as luminaire body allows filigree forms without losing stability. furthermore, it plays a major part in the thermal management by transporting the heat to the ambience.

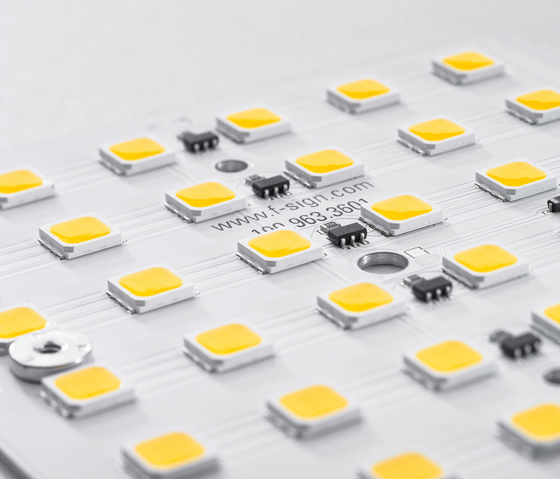

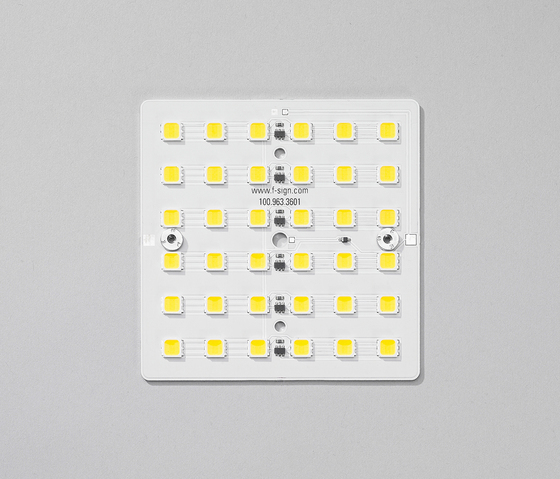

the integrated FSIGN[LED] technology makes one most efficient. energy consumption of a halogen luminaire with similar light yield would be 5 times higher. one saves up to 80% energy.
easy installation is the result of the modular design. requiring no maintenance FSIGN[LED] technology is predestined for difficult to access areas.
thanks to the number of varieties almost all unconventional mounting situations can be realised.

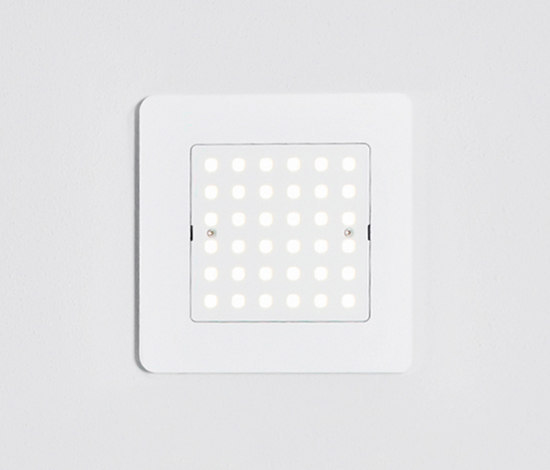

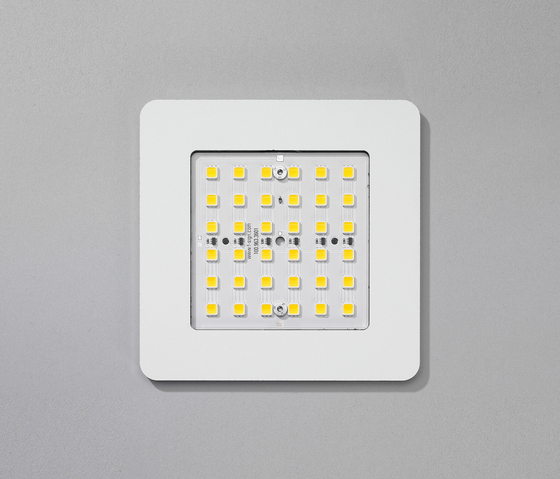

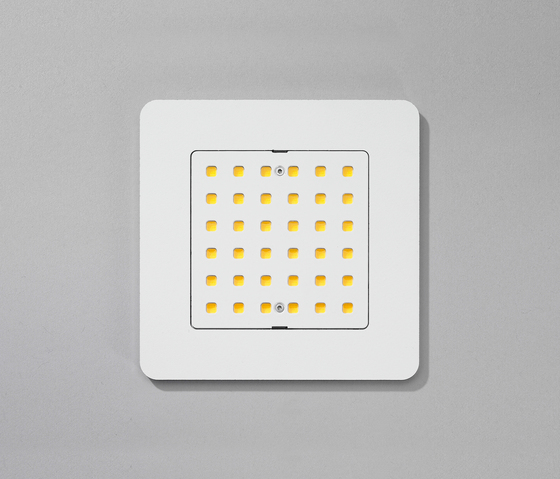

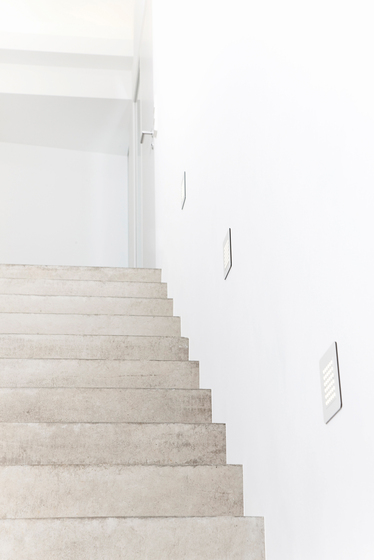

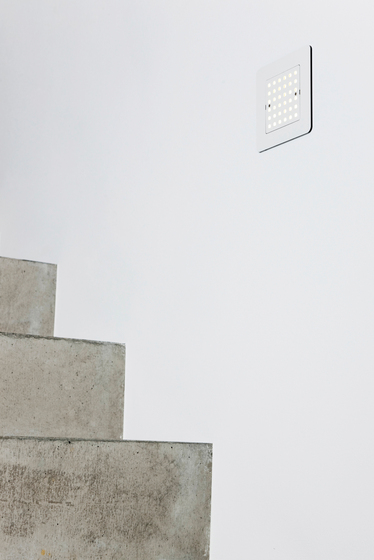

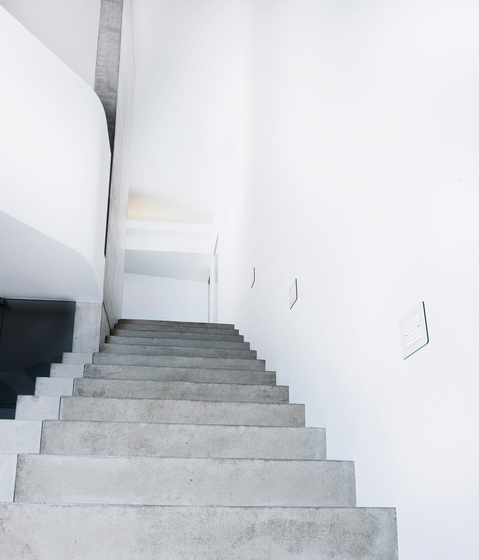

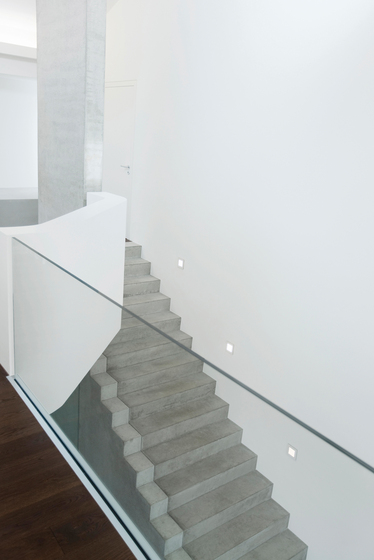

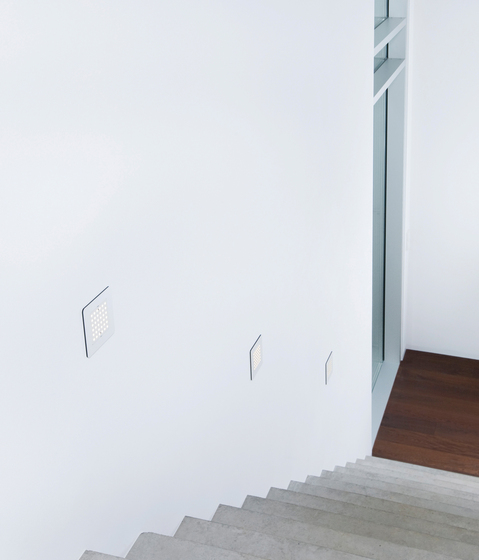

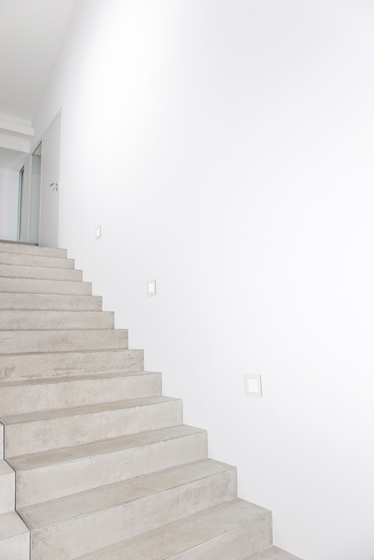

one LED wall / ceiling luminaire with FSIGN[LED] technology mountable on an in-wall junction-box with direct light distribution.
the required converter can be placed in a deep in-wall junction-box (Ø68x61mm), on-wall in combination with installation frame 22/42mm or centrally in the building.
colour temperature 3000K
viewing angel 120°
power supply 24v dc / 9.5w
luminous flux 700 lm
luminous efficacy 73 lm/w
