one LED. suspension luminaire di f-sign
j o h e c h t / f r e c h ³
one is a 4mm ultra-flat lighting series. straight design reduced to the essential.
aluminium composite used as luminaire body allows filigree forms without losing stability. furthermore, it plays a major part in the thermal management by transporting the heat to the ambience.

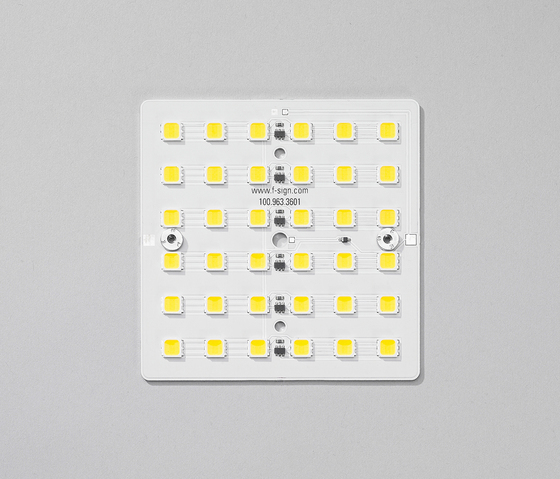

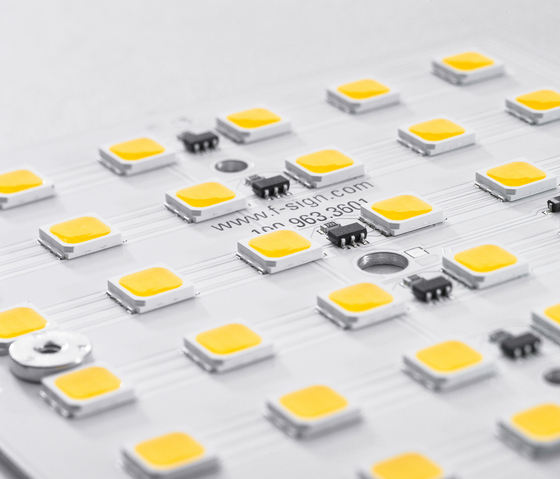

the integrated FSIGN[LED] technology makes one most efficient. energy consumption of a halogen luminaire with similar light yield would be 5 times higher. one saves up to 80% energy.
easy installation is the result of the modular design. requiring no maintenance FSIGN[LED] technology is predestined for difficult to access areas.
thanks to the number of varieties almost all unconventional mounting situations can be realised.

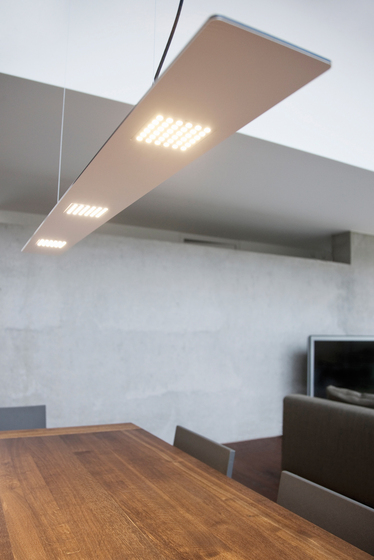

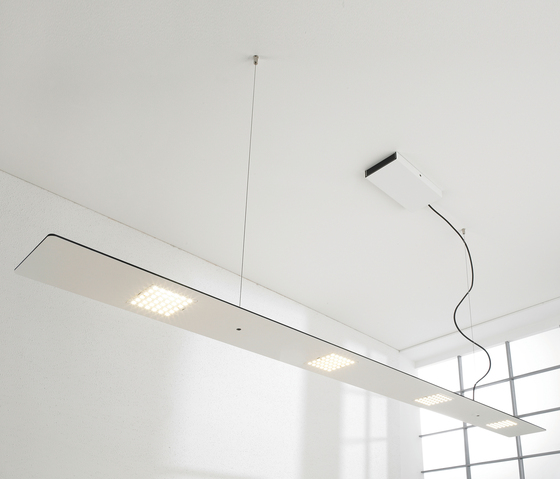

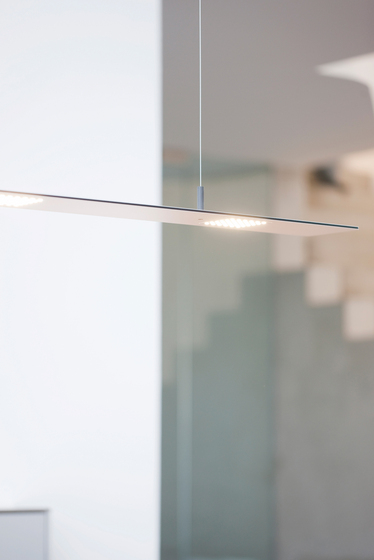

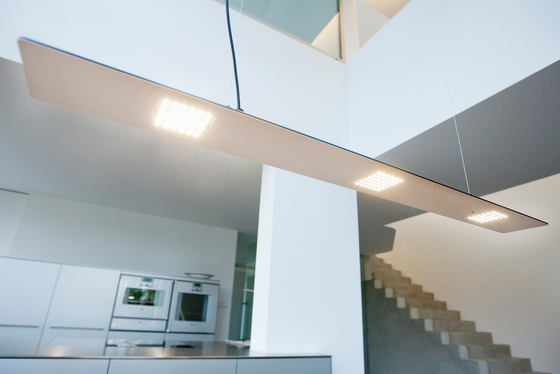

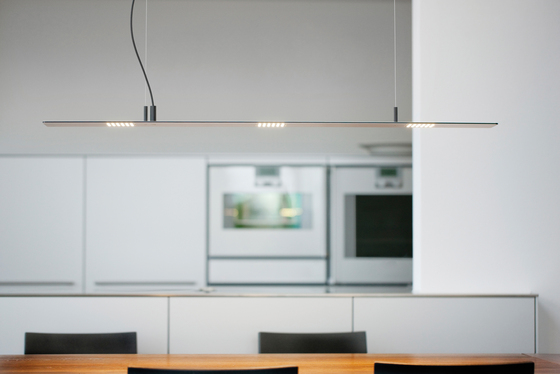

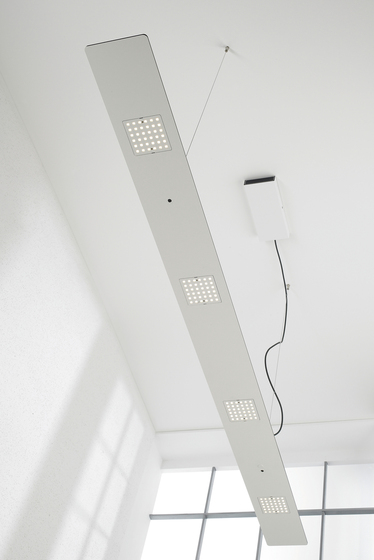

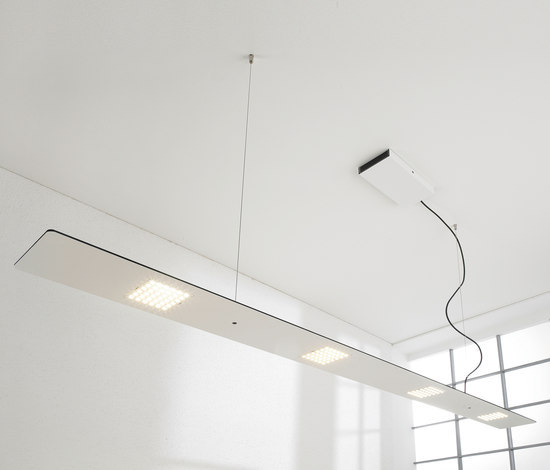

one suspension luminaire with FSIGN[LED] technology. stainless steel suspension ropes with decentral connection box. maximum standard suspension 160 cm.

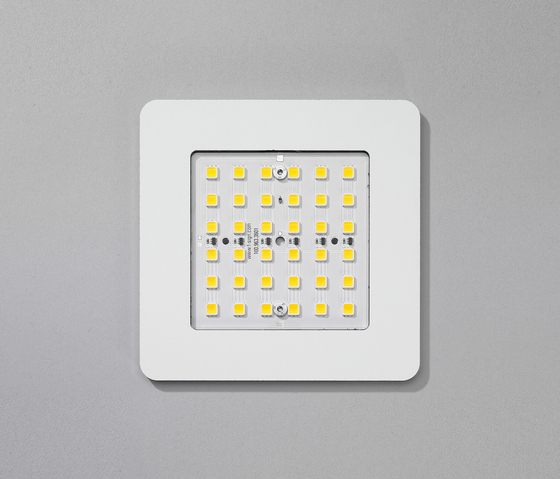

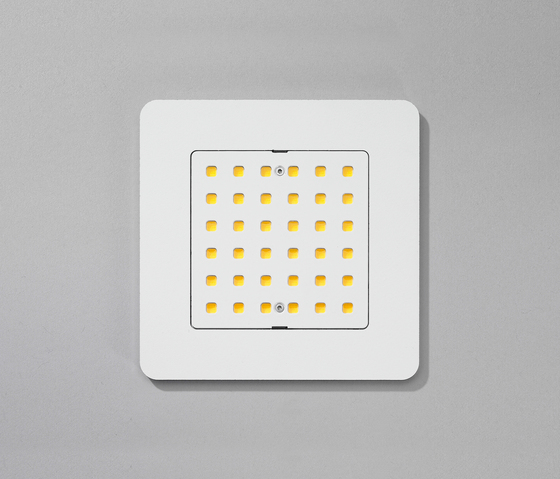

the required converter is integrated in the connection box. 120 cm with 3 FSIGN[LED] panels or 160 cm with 4 FSIGN[LED] panels.
colour temperature 3000K
viewing angel 120°
power supply 24v dc / 28.5 or 38 w
luminous flux 2100 or 2800 lm
luminous efficacy 73 lm/w
