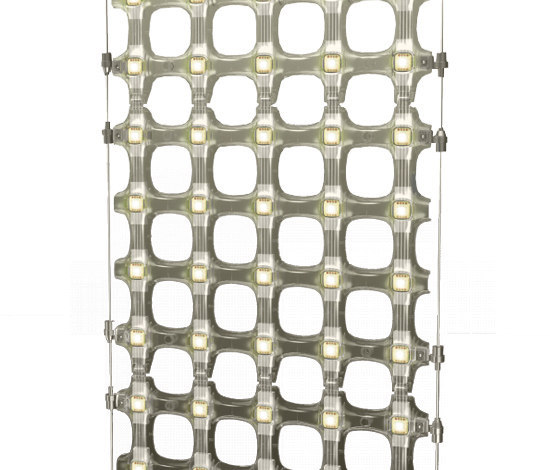

Award winning design and state-of-the-art LED technology makes Traxon’s Mesh an excellent choice for the most demanding and sophisticated applications. The Mesh is a semi-transparent system of LED modules, which is capable of displaying stunning lighting effects and eye-catching video animations. Available as part of the White Line (Cold White/Warm White) as well as RGB, each Mesh unit consists of eight grid elements connected by flexible joints, making it suitable for use on any surface, and giving it a significant benefit over conventional LED products. In addition, one Mesh unit comprises five strings, each with 32 pixels, resulting in 160 individually-controllable pixels. IP67-rating and UV resistance guarantee that the fixture is able to be used for any kind of outdoor applications. Equipped with Traxon’s innovative Smart Chip™ technology for auto-addressing and easy configuration, the Mesh can be controlled by DMX, as well as e:pix/DVI input signals. The White Line (Cold White/Warm White) combine all the advantages of LED lighting, including energy efficiency, reduced maintenance and electricity costs, lack of heat emission and UV radiation, durability, and long source life. The Mesh RGB is the perfect all-purpose solution, designed for challenging surface where unique and intriguing video displays are desired.
Features: 160 individually controllable pixels; Seamless interconnection of Mesh units; Back-to-back mounting option; Transparent grid; UV resistant; Auto-addressing; TX Connect™ Smart; 8 Grid-units per Mesh
Beam Angle: 120°
Color: RGB, Cold White, Warm White
Environment: Indoor, Outdoor (IP67)
Control: DMX, e:pix/DVI
Weight: 4kg / 8.8lbs
Dimensions: (L x W x H) 2000mm x 312.5mm x 16.3mm, 78.74" x 12.3" x 0.64"
