Liner Shield AC XB di Traxon

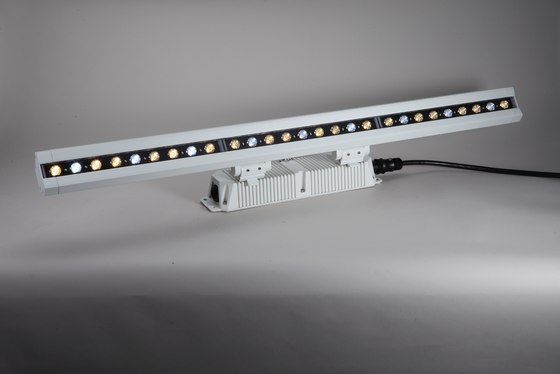

Shield AC XB is the new solution for large-scale, high-brightness architectural illumination. The outdoor-rated Shield AC XB, intended for wall washing and grazing, enables sophisticated bright light output, projecting long distances with a broad range of colors consisting of RGB, warm white, and cold white tones. The simple connection system and long run length capability of up to 32 fixtures enables easy installation for large-scale lighting projects.

Powered by AC line voltage – AC line voltage eliminates the need for remote LED engines, and allows the fixture to function up to 300 meters from its power source, with up to 32 fixtures per run.

Simple connection system - By using standard daisy-chain topology, with combined power and data cable, the Shield AC system simplifies wiring and lowers installation costs.

Detachable base design – The detachable base design gives the option of integrated or separated mounting for the base and the lamp. The separation of the fixture from the power supply makes the Shield AC highly durable, easy to maintain and flexible for use in many different scenarios.

Field-installable connectors – The field-installable connectors allow the optimization of cable lengths and fixture positions.

Various customization options – Shield AC XB customization choices include number of LEDs per fixture; LED color combinations (red, green, blue, warm white, cold white, dynamic white, and amber) and beam angle.

Outdoor-rated – Designed to accommodate exterior environments where a rich, even wash or graze is necessary, Shield AC XB’s IP66 rating renders it a strong solution for exterior façade illumination.
