Esbelta shelving system de Bd Barcelona

Designer Lluis Clotet, Oscar Tusquets Blanca
Année de projet 2000
Numéro ID d'Architonic 1017652

Request catalogue PDF catalogues Offer Demande de prix Contact Distribution partners Site web Demande de fichiers CAO

Envoyer la page Imprimer la page Enregistrer la page QR-Code

Share

Tweet

Stumble

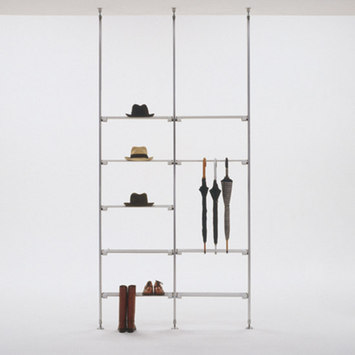

ESBELTA SHELVING
The shelf unit does not rest against the wall. The weight is still borne by the floor via the uprights, while the ceiling in this instance provides the stability that would otherwise be the function of the wall in Hypóstila. Single upright posts fixed to the ceiling, 3 or 4m height. HYP I of 25cm or HYP II Aluminium shelves.

Finishes:
ALUMINIUM SHELVINGS Upright posts in anodised matt aluminium. Silver matt extruded and anodised aluminium shelves. Flat shelf HYP I, of 25cm depth, with optionals side covers of grey plastic and tubular shelf HYP II of 15,5cm depth. The shelves can be cut made-to-measure and their corners can be rounded. Transparent glass shelves of 10mm, 90 x 26cm or 90 x 35cm. Matt-lacquered MDF shelves of 19mm, in white or black, 90 x 26cm or 90 x 35cm. Transparent glass tables of 10mm,90 x 54cm. Matt-lacquered MDF tables of 19mm, in white or black, 90 x 54cm. Supports for shelves or tablesin anodized matt aluminium profile. Toolings for fixing the profiles in white zinc coated iron. Union piece to the wall and feet in anodized silver cast aluminium. (Only for Cristalina). Union pieces between profilesceiling or profiles-floor and feet in cast aluminium painted in silver-effect. Frontal joints between the upright posts in anodized matt aluminium, 90cm length.
