Designer
Peter Steng
Numéro ID d'Architonic
1079706
BRIGG
Wall Lamps
Alongside the established halogen and metal halide versions that have been available for a number of years, the classic BRIGG range can now be fitted with the latest generation of Power LEDs. All sizes are equipped with warm white
Premium LEDs with a color tem-perature of 3000 K and a CRI of 82.
This multi-award-winning line has a clean, minimalist appearance creating a sense of simplicity that blends beautifully with the surrounding architecture. All BRIGG models are available in US-specific versions.
Please ask factory for details.
Plus
-
BRIGG Light modules

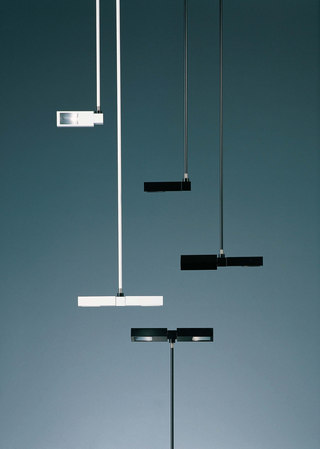

The module version of our design prize-winning BRIGG lighting range. The module, in a singleor double head version, is directly fitted with the STENG adapter. The best effect from the head is gained if you use a similarly-coloured extension rod suspended from the ceiling, or alternatively fit it with a foot, and use it as a table- or free-standing lamp. The head can be rotated steplessly by 360°, the light is radiated in one direction. BRIGG was awarded the IF Award and the IF-Öko Award.
lamp
QT-LP 9, QT-LP 12; 12V max 35W; G4, GY 6,35
Plus
Brigg Light modules
Année de projet
2008
Numéro ID d'Architonic 1079706
-
BRIGG WALL rigid
Light head rigid. Light distribution in two directions. For use with low-voltage bi-pin lamps (WBB) or high-voltage halogen G9 lamps (WBD).
US only: square canopy for use with single gang box included.
Lamps (12V Halogen)
QT-LP 9, QT-LP 12; 12V max 50W; G4, GY 6,35
Lamps (LED)
Power LED; 350 mA, 3,6 Watt; 2700 Kelvin; 630 cd
Lamps (230V Halogen)
Halopin G9; QT-LP 13; 230V max 60W; 120V max 60W
IP 20
dimensions
h x l 75 x 125 mm
Plus
Brigg Wall
Année de projet
2008
Numéro ID d'Architonic 1079609
-
HALF BIG BRIGG
Powerful compact wall lamp with light distribution in one direction only. Equipped with a reflector system that casts light deep in the room.
Lamps
QT-DE; 230V max 300W; 120V max 300W; R7s
Dimensions
l x w x h 200 x 160 x 60 mm
Plus
Half Big Brigg 1
Année de projet
2008
Numéro ID d'Architonic 1079639
-
SMALL BRIGG 1/2
SMALL BRIGG is available with light-distribution in one (1) or two (2) directions.
Lamps
QT-DE; 230V max 300W; 120V max 300W; R7s
Dimensions
l x b x h 200 x 70 x 60 mm
Plus
Small Brigg 1/2
Année de projet
2008
Numéro ID d'Architonic 1079638
-
MINI BRIGG 1/2
MINI BRIGG is available with light-distribution in one (1) or two (2) directions.
Lamps
QT-LP 13; 230V max 75W; 120V max 60W; Halopin G9
Dimensions
l x w x h 100 x 70 x 60 mm
Plus
Mini Brigg 1/2
Année de projet
2008
Numéro ID d'Architonic 1079635
-
MIDI BRIGG 1
Light distribution in one direction.
Lamps
QT-DE; 230V max 300W; 120V max 300W; R7s
Dimensions
l x w x h 300 x 100 x 60 mm
Plus
Midi Brigg 1
Année de projet
2008
Numéro ID d'Architonic 1079636
-
MIDI BRIGG 2
Same design as MIDI BRIGG 1, however with light distribution in two directions. Each lamp can be controlled individually.
Lamps
QT-DE; 230V max 230W; 120V max 230W; R7s
Direct
QPAR-51; 230V max 35W; 120V max 35W; GU10
Dimensions
l x w x h 300 x 100 x 60 mm
Plus
Midi Brigg 2
Année de projet
2008
Numéro ID d'Architonic 1079637
-
BIG BRIGG 1
BIG BRIGG 1 is available in two versions as high-voltage halogen and as HIT/metal halide version. With the HIT/MH version, the electronic ballast is included in the housing.
Lamps
QT-DE; 230V max 300W; 120V max 300W; R7s
Metal halide
HIT-DE; 230V 70W; RX7s
Dimensions
l x w x h 300 x 200 x 60 mm
Plus
Big Brigg 1
Année de projet
2008
Numéro ID d'Architonic 1079611
-
BIG BRIGG 2
Same design as BIG BRIGG1 however with light distribution in two directions. Each lamp can be controlled individually.
Lamps
QT-DE; 230V max 230W; 120V max 230W; R7s
Direct
QPAR-51; 230V max 35W; 120V max 35W; GU10
Power LED; 230V 3x1W; GU10
Dimensions
l x b x h 300 x 200 x 60 mm
Plus
Big Brigg 2
Année de projet
2008
Numéro ID d'Architonic 1079612
