Zoom has a special feature to thank for its name: The suspended luminaire can change in size. The way it is constructed makers this possible, as, just like a harmonica, the flexible stainless steel concertina mesh can be infinitely extended and pushed back together again. This way Zoom is also able to adapt to the particular spatial circumstances. In terms of size and design the luminaire is reminiscent of a traditional chandelier – and can indeed be used as such.

Awards
Design Center Stuttgart, Focus in Gold ; Design Zentrum Nordrein-Westfalen, Red Dot Award

Más

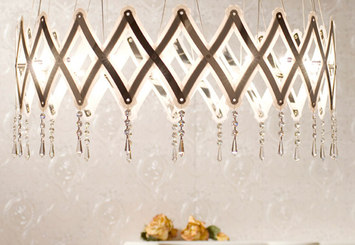

In the twinkling of an eye a set of sparkling crystals transforms Zoom into a magnificent chandelier sure to evoke a bright, festive mood. The 20 separate crystal chains are simply draped over lower insets of the concertina mesh, and then Zoom is ready for its big entrance.

Material
lead crystal glass

Other features
set of 20 crystal chains
Más

Zoom Kristall
Diseñado el año 2009

Architonic contraseña 1071605
Small or wide circle, compact table lamp or spectacular chandelier: the mechanism of transformation is fascinating. A quick-change artist with a diameter ranging between 20 and 130 cm!
Diameter continuously adjustable. For maximum diameter minimum suspension 900 mm when lamp closed. Lamp will rise 675 mm when completely opened.

steel (inox) and translucent foil
Regulation External dimming transformer possible
Light free up- and downwards

20 low voltage halogen lamps, 10 W/G4, 12 V

Control
Regulation external dimming transformer possible (primary side)

D min. 20, max. 130 cm
H min. 90, max. 220 cm
Más

Zoom
Diseñado el año 2001

Architonic contraseña 1038363
A representative tribute to modern age: an impressive chandelier for reception halls, staircases, ballrooms. Adjust the diameter yourself: anything between 40 and 260 cm is possible! Zoom XL can also be mounted as a cascade.
diameter continuously adjustable. for maximum diameter minimum suspension 1800 mm when lamp closed. Lamp will rise 1100 mm when completely opened. Exceptional lengths possible. Zoom XL can be cascaded as shown.

Material
Spring steel, satin-finish , alternatively polished and translucent foil (>Canopy: stainless steel dome with glossy finish. Twin lead transparent exterior and inner side silver. concertina lattice: spring steel lamella satin finish on plastic lamella polycarbonate foil ("Lexan"))

20 halogen bulbs (candle shape ) "ECO" 28W / E14 (max. 60 W)

Control
Regulation external dimming transformer possible (primary side)

Regulation external dimmer recommended
Light free up- and downwards

D min. 40, max. 260 cm
H min. 180, max. 300 cm
Más

Zoom XL
