QuadroClad™ de Hunter Douglas

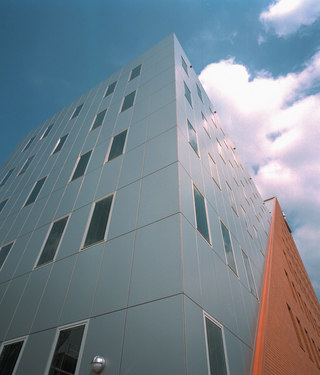

The QuadroClad™ System is a unique, openjointed cladding system based on rainscreen technology. Integrated channels provide ventilation that enables rain and condensation to drain behind the cladding surface, ensuring a much cleaner façade with lower maintenance costs. The flexibility in panel size and shape, as well as the option of curving and cranking, allows the QuadroClad™ Façade System to be applied to almost any new or existing superstructure with simple and adjustable fixings. The QuadroClad™ 25-15 Façade System, is ideally suited to any building no matter what size - from low to high rise - and can be applied to any location within the building. Where large panels are vital to the design concept, QuadroClad™ Panels offer a flexible solution in sizes up to 1,500 mm x 6,000 mm. Our ‘total’ QuadroClad™ 25-15 Façade system includes integrated windows, doors and sun control, ensuring you achieve a unique aesthetic with optimal performance.

Characteristics

25 mm thick aluminium panel system
 Dimensions up to 1500 mm x 6000 mm
Low weight (approximately 6 kg/m2)
Extreme panel flatness combined with ‘crisp’ edges
Tightly controlled joint widths of 15mm
Aluminium honeycomb composite technology
Capability to withstand very high wind loads
Suitable for any building size - high or low
Endless possibilities for combining material and finishes. Choice of coatings (Luxacote®, PVF2, dual tone, ‘look-alike’ finishes, and anodised aluminium)
Panels available in curved, cranked and triangular shapes
Suitable for sloping façades, corners, external soffits and (exterior) ceilings
Joints provide ventilated cavity (reducing surface wind-load effect by pressure equalisation)
No thermal-bow in panels due to aluminium honeycomb construction
Quick installation methods with minimum fixings to structure
Integrated support structure
concealed fixation
´Total´ façade system including windows, doors and louvers - for both flush and recessed façade designs
Easy individual panel installation or replacement; in any other sequence that suits the construction program
Superior quality and durability
Virtually maintenance free
Simple detailing
Made to measure product
