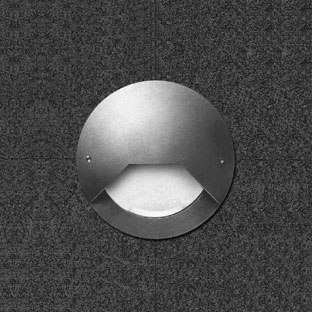

In-ground floodlights

Protection class IP 67
Light opening 90°
Die cast bronze diffuser
Stainless steel housing · Safety glass
Reflector of pure anodized aluminium
1 cable gland
1.5 m connecting cable
H07 RN-F 3 G 1.5
1.2 m PVC protective tube for underground cable to connecting sleeve.
We supply a shield for these luminaires to reduce the light opening.
The shield allows light output of either 30° or 60°. Shields are accessories and must be ordered separately.

• low voltage tungsten halogen lamps QT 12-ax 35 W
• discharge lamps HIT-TC-CE 35 W Lampholder G 8.5
• discharge lamps HI/HST-DE 70 · 150 W

Round diffuser
8702: 1 QT 12-ax, 35 W, Lumen 600; 90°, A=180, B=180, C=120, D=40 mm
8718: 1 HIT-TC-CE, 35 W, Lumen 3300; 90°, A=290, B=295, C=120, D=50 mm
8719: 1 HI /HST-DE, 70 W, Lumen 5000 · 7000; 100°, A=350, B=355, C=160, D=65 mm
8720: 1 HI /HST-DE, 150 W, Lumen 11000 ·15 000; 135°, A=440, B=440, C=160, D=70 mm

Square diffuser
8612: 1 QT 12-ax, 35 W, Lumen 600; 90°, A=180, B=180, C=120, D=40 mm
8614: 1 HIT-TC-CE, 35 W, Lumen 3300; 90°, A=290, B=295, C=120, D=50 mm
8615: 1 HI /HST-DE, 70 W, Lumen 5000 · 7000; 100°, A=350, B=355, C=160, D=65 mm
