Floodlight 7423/7534/... de BEGA

Floodlight

Protection class IP 55
Die cast aluminium, aluminium und stainless steel
Aluminium ring louvre
Mounting box with 2 cable entries
7423 · 7534 Colour: graphite – art. no.
white – art. no. + W

• reflector lamps PAR 38 60 · 80 · 120 W Beam angle Spot 12° · Flood 30°

Permanent floodlights with mounting box Ø 110

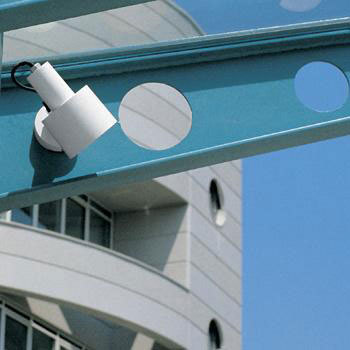

7423 with mounting box 1 PAR 38 60 · 80 · 120 W 600 · 800 · 1200

Permanent double floodlight with mounting box Ø 100
7534 with mounting box 2 PAR 38 60 · 80 · 120 W 1200 · 1600 · 2400

with earth spike, wood screw or screw clamp
Protection class IP 55
Die cast aluminium and stainless steel
Aluminium ring louvre
Glass-fibre reinforced plastic earth spike
Stainless steel wood screw
Die cast aluminium screw clamp for clamping thickness up to 50 mm
Ready for connection with 5 m cable and power plug
Protection class IP X4
Colour: graphite

• reflector lamps PAR 38 60 · 80 ·120 W

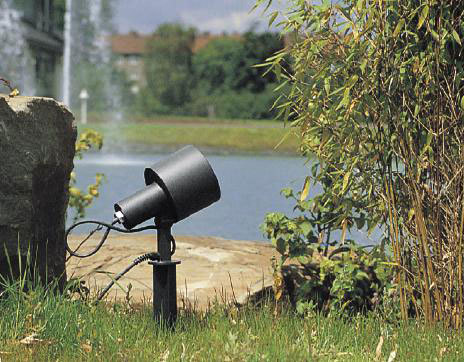

7380: with earth spike 1 PAR 38, 60·80·120 W, Lumen 600·800·1200; A=130, B=480, C=225 mm

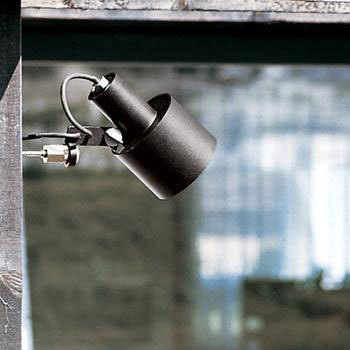

7431: with wood screw 1 PAR 38, 60·80·120 W, Lumen 600·800·1200; A=225, B=280 mm

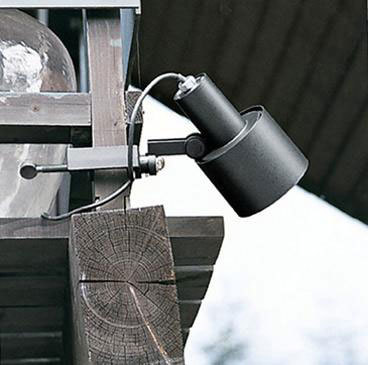

7424: with screw clamp 1 PAR 38, 60·80·120 W, Lumen 600·800·1200; A=225, B=350 mm
