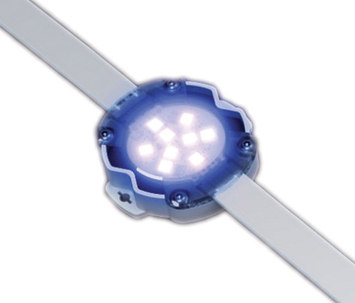

Dot XL de Traxon

Traxon’s IP67-rated Dot XL is an ultra-bright solution which enriches sophisticated and demanding architectural installations with full color lighting effects and spectacular video capability. Available with 3, 6 or 9 high-performance LEDs per casing, the individually controllable Dots are suitable for applications in bright sunlight, rain, or other extreme weather conditions. The Dots are mounted on a flexible string with customizable pixel pitch, and are controlled by DMX or e:pix/DVI input signals, enabling streaming of video or the replay of stored content. Featuring easy interconnection and daisy chaining possibilities, the Dot XL is suitable for any large scale media installation where a unique and sustainable lighting concept is required. Dot XL’s White Line (Cold White/Warm White) combines all of the advantages of LED lighting, including energy efficiency, reduced maintenance and electricity costs, lack of heat emission and UV radiation, durability and long source life. Dot XL’s option is a multi-purpose lighting solution, ideal for media installations of any size, where a professional and sophisticated lighting concept is required.


Features: High intensity SMD LEDs; Scalable system and customizable pixel pitch (Dot XL-6/9: 150mm minimum, Dot XL-3: 100mm minimum); Individually controllable pixels; Outdoor (IP67); Auto-addressing; Easy mounting
Beam Angle: 120°
Color: RGB, Cold White, Warm White
Environment: Indoor, Outdoor (IP67)
Control: DMX, e:pix/DVI
Weight: Dot XL-3: 25g (per dot), Dot XL-6/9: 80g (per dot)

Dimensions:
Dot XL-3: Ø36.2mm x 11.8mm, Ø1.43" x 0.46" (dot size)
Dot XL-3 with diffuser dome: Ø36.2mm x 27mm, Ø1.43” x 1.06” (dot size)
Dot XL-6/9: Ø66mm x 15.6mm, Ø2.6" x 0.61" (dot size)
Dot XL-6/9 with diffuser dome: Ø66mm x 36mm, Ø2.6” x 1.4” (dot size)
