SlimBox von Estel Office

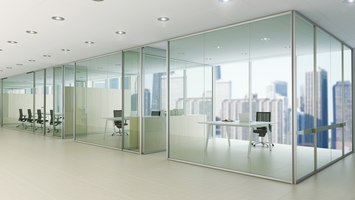

Partition system able to create a new working environment. Glass walls, partially or fully blind, equipped with integrated systems of storage units and glazed panels suitable for accessory fixation (shelves, boxes, blind). SlimBox gives many possibilities to build spaces able to follow the functions that a modern way of working requires. Operative offices, environments to increase concentration, spaces to work in team and large meeting rooms; are just some examples of how SlimBox can cover so elegant and discreet always new needs. Characterized by 2 different heights for the horizontal profiles and a wide range of doors and corner joints types, SlimBox lives in the workplace giving it formal harmony and cleaning to a higher life and recognizable environments.

Structural characteristics
The structure is self-supporting, can be dismantled and re-used, with extruded aluminium profiles (anodised or treated with epoxy paints) and is characterised by considerable stability. It is available in all heights. A special micrometric internal adjustment system compensation for instances not parallel with plumb-line. Aluminium or polycarbonate profiles can be inserted between the glass plates. Safety glazed panels 10 – 10,38 – 12 – 12,38 mm thick, coupled or tempered.

Total wall thickness
48 mm.

Modularity
Yes: the modularity is “designed” according to the building’s modularity.

Outer finish
Safety glazed panels 10 – 10,38 – 12 – 12,38 mm thick, coupled or tempered.
Laminate or wood sandwich filler panels.

Soundproofing
According to regulations in force.

Storage units
Storage units perfectly integrated within the system: the glass plates are inserted in slots, suitably equipped with seals, milled in the lateral end-sides and in the tops.

Doors
Full-height doors, glazed hinged doors with aluminium frame, glazed or solid, glazed sliding doors with aluminium frame, single or double. In safety glass plate or hollow-core.

Floor / ceiling tolerance
Profiles: h 40 +/- 10 mm.
Profiles: h 75 +/- 23 mm.

Joints
Aluminium or polycarbonate, 2-3 way

Product warranty
2 years, excepting for different contractual agreements.

Recyclability
Yes

Product’s eco-compatibility
Yes

Packing
Eco-compatible – recyclable
